Superior Quality Forged Steel Body
Standard accessories for chuck
with solid jaws:
● 1 Set of hard solid outside jaws
● 1 Set of hard solid inside jaws
● 1 Chuck wrench
● 1 Set of mounting bolts
● 1 Hex key
● Eye bolts for chucks 315 and upper
Standard accessories for chuck
with two-piece jaws:
● 1 Set of hard top jaws
● 1 Set of hard master jaws
● 1 Chuck wrench
● 1 Set of mounting bolts
● 1 Hex key
● Eye bolts for chucks 315 and upper

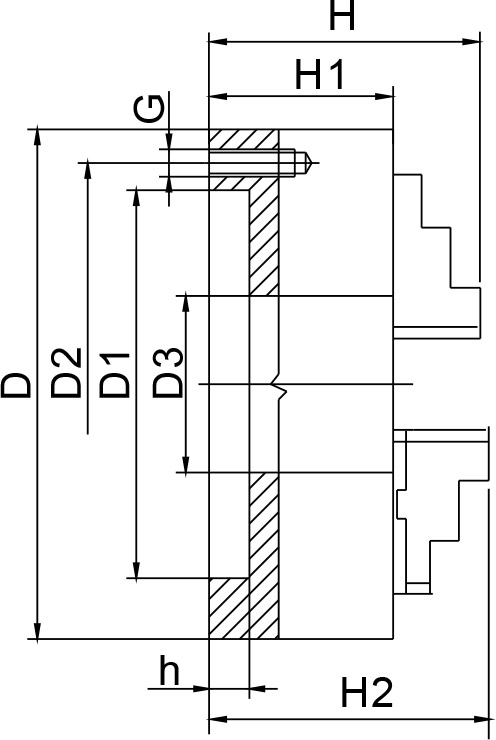

| Chuck Size（D） | D1 | D2 | Hole Dia.（D3） | H | H1 | H2 | h | G | NM Max. Input Torque | R.P.M Max.Speed | Chuck Model（Solid Jaws） | Chuck Model（Two-Piece Jaws） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 80 | 56 | 67 | 16 | 66.5 | 50 | - | 4 | 3-M6 | 40 | 4000 | DK12-80 | - |
| 100 | 70 | 83 | 22 | 74.5 | 55 | - | 4 | 3-M8 | 60 | 3500 | DK12-100 | - |
| 125 | 95 | 108 | 30 | 84.5 | 58 | 95 | 4 | 3-M8 | 100 | 3000 | DK12-125 | DK12-125A |
| 160 | 125 | 140 | 45 | 94 | 65 | 109 | 5 | 6-M10 | 160 | 2500 | DK12-160 | DK12-160A |
| 200 | 160 | 176 | 65 | 109 | 75 | 122 | 5 | 6-M10 | 250 | 2000 | DK12-200 | DK12-200A |
| 250 | 200 | 224 | 80 | 120 | 80 | 136 | 5 | 6-M12 | 320 | 1600 | DK12-250 | DK12-250A |
| 315 | 260 | 286 | 100 | 147.5 | 90 | 156.5 | 6 | 6-M16 | 400 | 1200 | DK12-315 | DK12-315A |
| 400 | 330 | 362 | 130 | 173.5 | 100 | 173.5 | 6 | 6-M16 | 500 | 1000 | DK12-400 | DK12-400A |
| 500 | 420 | 458 | 210 | 202 | 115 | 202 | 6 | 6-M16 | 630 | 800 | DK12-500 | DK12-500A |
| 630 | 545 | 586 | 260 | 194 | 135 | 220.5 | 7 | 6-M16 | 800 | 800 | DK12-630 | DK12-630A |
