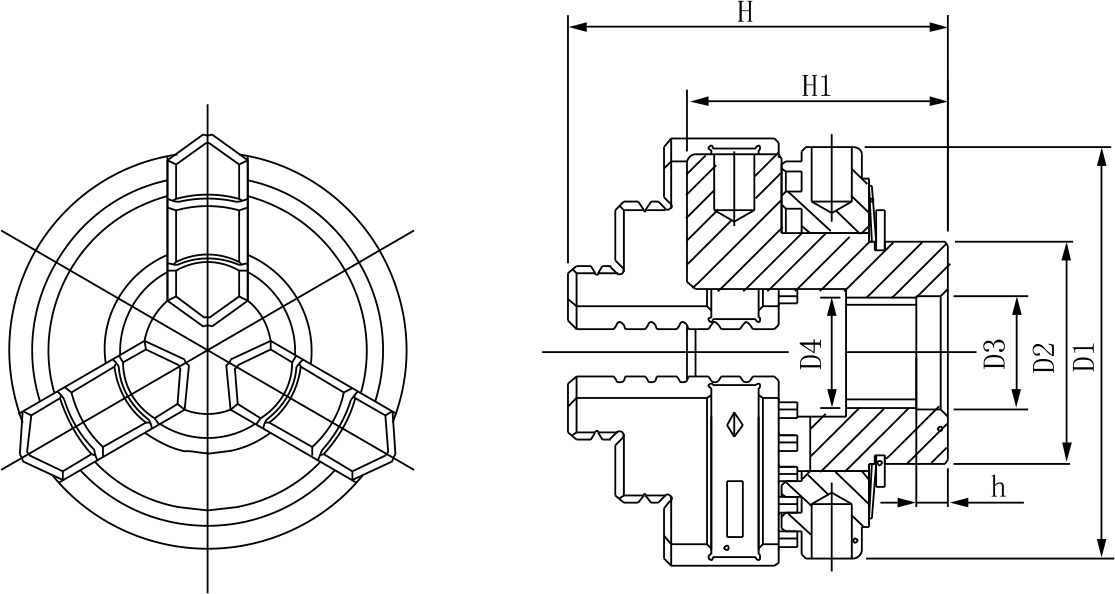

| Chuck Size | D1 | D2 | D3 | D4 Mounting Thread | h | H | H1 | Chuck Model |
|---|
| 50 | 50 | 28 | 15 | M12 x 1 | 4 | 48 | 33 | K01 - 50(M12x1) |
| 50 | 50 | 28 | 15 | M14 x 1 | 4 | 48 | 33 | K01 - 50(M14x1) |
| 50 | 50 | 28 | 15 | SM3/4 - 16 | 4 | 48 | 33 | K01 - 50(3/4 - 16) |
| 65 | 68 | 28 | 15 | M12 x 1 | 4 | 48 | 33 | K01 - 65(M12x1) |
| 65 | 68 | 28 | 15 | M14 x 1 | 4 | 48 | 33 | K01 - 65(M14x1) |
| 65 | 68 | 28 | 15 | SM3/4 - 16 | 4 | 48 | 33 | K01 - 65(3/4 - 16) |
| 80 | 84 | 45 | 25 | 3 - M5 | 3 | 42 | 30 | K01 - 80 |
| Chuck Size | Max Gripping Dia - Internal Jaws A - B | Max Gripping Dia - Internal Jaws C - D | Max Gripping Dia - External Jaws E - F | Max Speed (r.p.m) | Max Gripping Force (KN) | Gross Weight (kg) |
|---|
| 50 | 1 - 15 | 20 - 48 | 20 - 47 | 9000 | 7 | 0.4 |
| 65 | 2 - 16 | 25 - 60 | 22 - 55 | 8200 | 8 | 0.7 |
| 80 | 2 - 18 | 25 - 75 | 22 - 63 | 7500 | 9 | 1.2 |
