Forged Steel Body

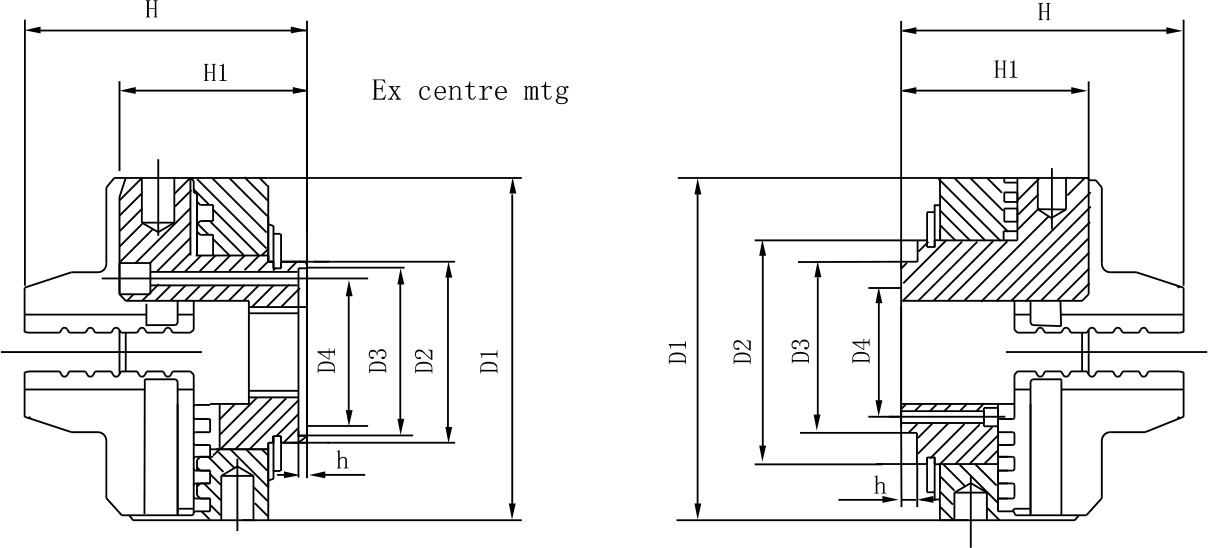

| CHUCK SIZE | CHUCK MODEL | D1 | D2 | D3 | D4 | h | H | H1 |
|---|---|---|---|---|---|---|---|---|
| 80 | K03 - 80 - 1 | 80 | 52 | 48 | 39 | 1.5 | 56 | 35 |
| 80 | K03 - 80 - 2 | 80 | 52 | 38 | 30 | 3.0 | 56 | 35 |
| SPEC./MODEL | Max.Gripping Dia. - Internal Jaws | Max.Speed (r.p.m) | Max.Gripping Force (kN) | Gross Weight (Kg) |
|---|---|---|---|---|
| K03 - 80 - 1 | 2 - 20 | 7600 | 10 | 1.2 |
| K03 - 80 - 2 | 2 - 20 | 7600 | 10 | 1.2 |
