FSDTM High Quality Cast Iron Body

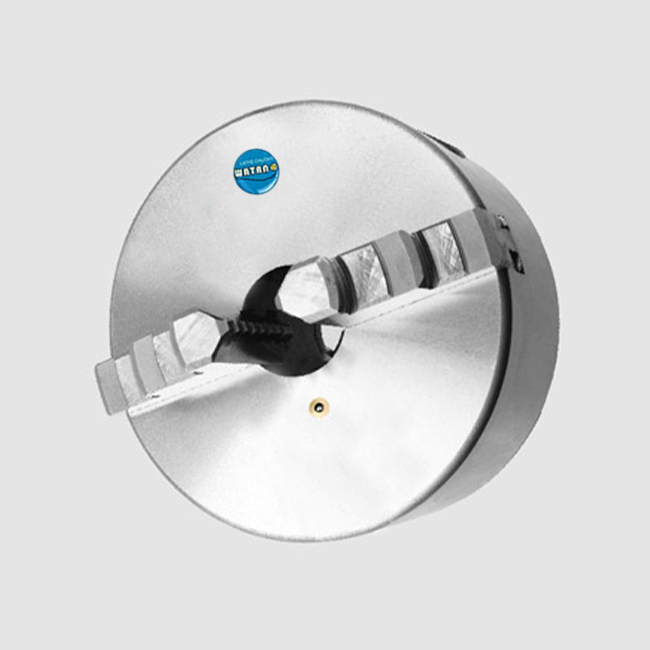

Standard accessories for chuck
with solid jaws:
● 1 Set of hard solid outside jaws
● 1 Set of hard solid inside jaws
● 1 Chuck wrench
● 1 Set of mounting bolts
● 1 Hex key
● Eye bolts for chucks 315 and upper

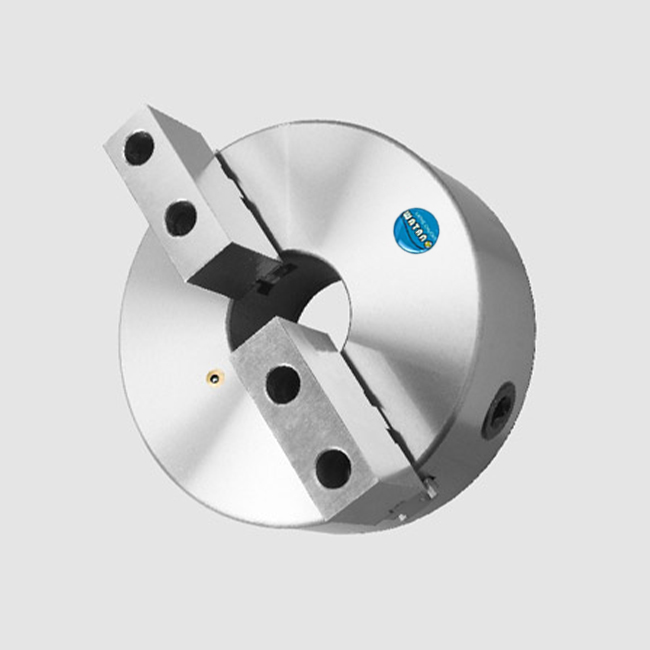

Standard accessories for chuck
with two-piece jaws:
● 1 Set of hard top jaws
● 1 Set of hard master jaws
● 1 Chuck wrench
● 1 Set of mounting bolts
● 1 Hex key
● Eye bolts for chucks 315 and upper
| Chuck Size D | D1 | D2 | Hole Dia D3 | H1 | h | G | NM Max.Input Torque | R.P.M Max.Speed | Chuck Model | ||
| Solid Jaws | Two-Piece Jaws | ||||||||||
| 80 | 55 | 66 | 16 | 50 | 4 | 3-M6 | 40 | 4000 | K10-80 | K10-80S* | |
| 100 | 72 | 84 | 22 | 55 | 3 | 3-M8 | 60 | 3500 | K10-100 | K10-100S* | |
| 125 | 95 | 108 | 30 | 58 | 4 | 3-M8 | 100 | 3000 | K10-125 | K10-125S | |
| 160 | 130 | 142 | 45 | 65 | 5 | 3-M8 | 160 | 2500 | K10-160 | K10-160S | |
| 200 | 165 | 180 | 65 | 75 | 5 | 3-M10 | 250 | 2000 | K10-200 | K10-200S | |
| 250 | 206 | 226 | 80 | 80 | 5 | 3-M12 | 320 | 1600 | K10-250 | K10-250S | |
| 315 | 260 | 285 | 100 | 90 | 6 | 3-M16 | 400 | 1200 | K10-315 | K10-315S | |
| 400 | 340 | 368 | 130 | 112.5 | 6 | 3-M16 | 500 | 1000 | K10-400 | K10-400S | |
