Home Products K11/A1,A2 Series Type C , Direct Mount , Mounting With Studs and Locknuts 3-Jaw Self-Centering Chucks

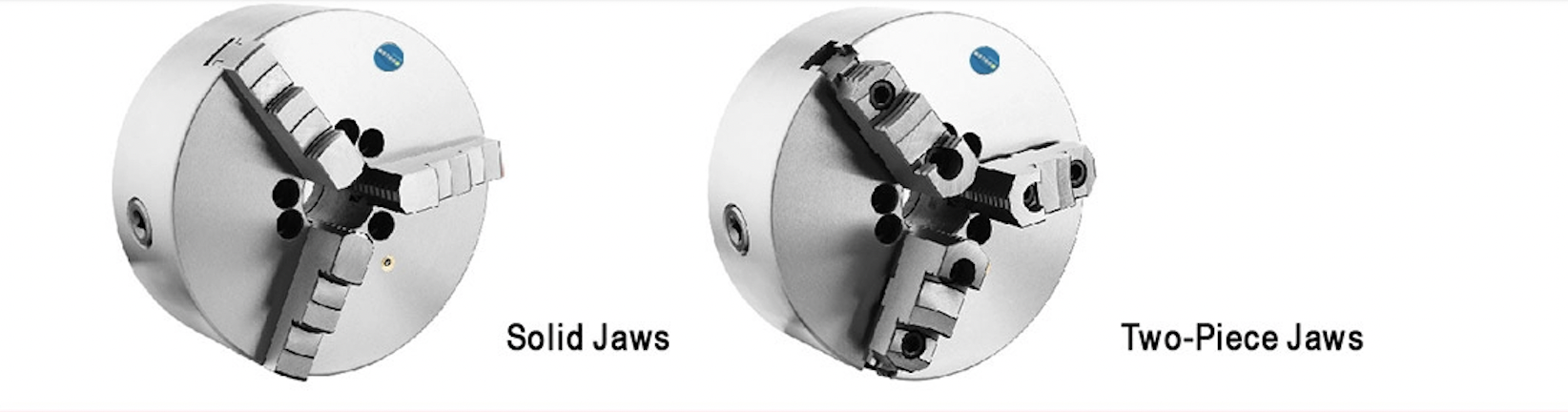

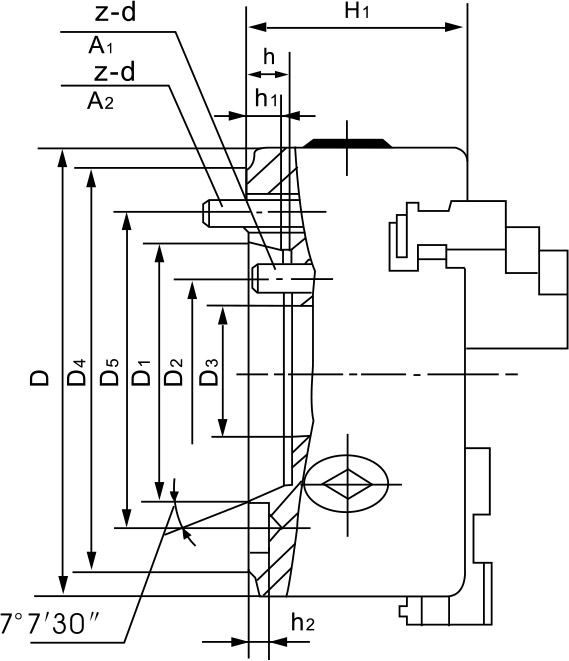

| Chuck Size D | Taper Size | D1 | D2 | D3 | D4 | D5 | H1 | h | h1 | h2 | d1 | z - d | Chuck Model - Solid Jaws | Chuck Model - Two - Piece Jaws |
|---|
| 200 | A2 - 4 | 63.513 | - | 60 | 108 | 82.6 | 90 | 13 | 10 | 6.5 | 14.7 | 3 - M10 | K11 - 200/A2 - 4 | K11 - 200A/A2 - 4 |
| 200 | A1 - 5 | 82.563 | 61.9 | 40 | 133 | - | 90 | 14.288 | 12 | 6.5 | 16.3 | 3 - M10 | K11 - 200/A1 - 5 | K11 - 200A/A1 - 5 |
| 250 | A1 - 6 | 106.375 | 82.6 | 55 | 165 | - | 96.5 | 15.875 | 13 | 6.5 | 19.5 | 6 - M12 | K11 - 250/A1 - 6 | K11 - 250A/A1 - 6 |
| 315 | A2 - 6 | 106.375 | - | 100 | 165 | 133.4 | 113 | 16 | 13 | 6.5 | 19.5 | 6 - M12 | K11 - 315/A2 - 6 | K11 - 315A/A2 - 6 |
| 315 | A1 - 8 | 139.719 | 111.1 | 78 | 210 | 171.4 | 113 | 17.462 | 14 | 8 | 24.2 | 6 - M16 | K11 - 315/A1 - 8 | K11 - 315A/A1 - 8 |
| 400 | A2 - 6 | 106.375 | - | 100 | 165 | 133.4 | 126 | 16 | 13 | 6.5 | 19.5 | 6 - M12 | K11 - 400/A2 - 6 | K11 - 400A/A2 - 6 |
| 400 | A2 - 8 | 139.719 | - | 130 | 210 | 171.4 | 126 | 18 | 14 | 8 | 24.2 | 6 - M16 | K11 - 400/A2 - 8 | K11 - 400A/A2 - 8 |
| 400 | A1 - 11 | 196.869 | 165.1 | 130 | 280 | - | 126 | 19.05 | 16 | 10 | 29.4 | 6 - M20 | K11 - 400/A1 - 11 | K11 - 400A/A1 - 11 |
| 500 | A2 - 11 | 196.869 | - | 190 | 280 | 235 | 144 | 20 | 16 | 10 | 29.4 | 6 - M20 | K11 - 500/A2 - 11 | K11 - 500A/A2 - 11 |
| 500 | A2 - 15 | 285.775 | - | 210 | 380 | 330.2 | 144 | 21 | 17 | 10 | 35.7 | 6 - M24 | K11 - 500/A2 - 15 | K11 - 500A/A2 - 15 |
| 630 | A2 - 11 | 196.869 | - | 190 | 280 | 235 | 165 | 20 | 16 | 10 | 29.4 | 6 - M20 | K11 - 630/A2 - 11 | K11 - 630A/A2 - 11 |
| 630 | A2 - 15 | 285.775 | - | 260 | 380 | 330.2 | 165 | 21 | 17 | 10 | 35.7 | 6 - M24 | K11 - 630/A2 - 15 | K11 - 630A/A2 - 15 |
