Home Products K11/C Series Type C , Direct Mount , Mounting With Studs and Locknuts 3-Jaw Self-Centering Chucks

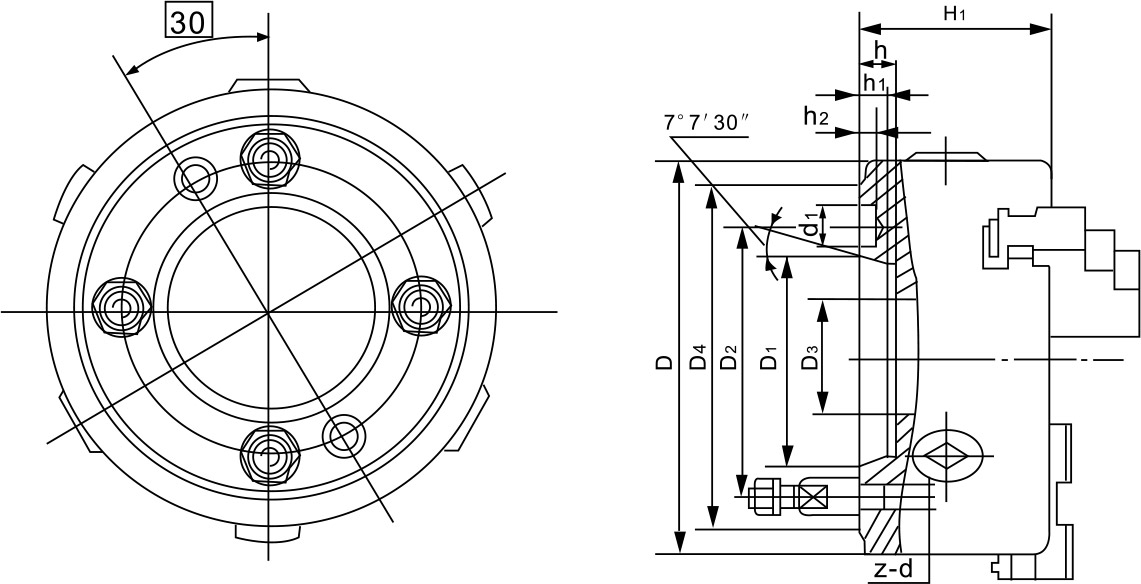

K11/C Series Type C , Direct Mount , Mounting With Studs and Locknuts 3-Jaw Self-Centering Chucks

Inquire

Product Description

Chuck Size D	Taper Size	D1	D2	D3	D4	H1	h	h1	h2	d1	z - d	Chuck Model - Solid Jaws	Chuck Model - Two - Piece Jaws
125	C3	53.975	75	30	102	63.5	13	10	-	-	3 - M10	K11 - 125/C3	K11 - 125A/C3
125	C4	63.513	85	30	112	63.5	13	10	6.5	14.7	3 - M10	K11 - 125/C4	K11 - 125A/C4
160	C3	53.975	75	40	102	70	13	10	-	-	3 - M10	K11 - 160/C3	K11 - 160A/C3
160	C4	63.513	85	40	112	70	13	10	6.5	14.7	3 - M10	K11 - 160/C4	K11 - 160A/C4
160	C5	82.563	104.8	40	135	70	15	12	6.5	16.3	4 - M10	K11 - 160/C5	K11 - 160A/C5
200	C4	63.513	85	60	112	90	13	10	6.5	14.7	3 - M10	K11 - 200/C4	K11 - 200A/C4
200	C5	82.563	104.8	60	135	90	15	12	6.5	16.3	4 - M10	K11 - 200/C5	K11 - 200A/C5
200	C6	106.375	133.4	60	170	90	16	13	6.5	19.5	4 - M12	K11 - 200/C6	K11 - 200A/C6
250	C5	82.563	104.8	70	135	96.5	15	12	6.5	16.3	4 - M10	K11 - 250/C5	K11 - 250A/C5
250	C6	106.375	133.4	70	170	96.5	16	13	6.5	19.5	4 - M12	K11 - 250/C6	K11 - 250A/C6
250	C8	139.719	171.4	80	220	96.5	18	14	8	24.2	4 - M16	K11 - 250/C8	K11 - 250A/C8
315	C6	106.375	133.4	100	170	113	16	13	6.5	19.5	4 - M12	K11 - 315/C6	K11 - 315A/C6
315	C8	139.719	171.4	100	220	113	18	14	8	24.2	4 - M16	K11 - 315/C8	K11 - 315A/C8
315	C11	196.869	235	100	290	113	20	16	10	29.4	6 - M20	K11 - 315/C11	K11 - 315A/C11
320	C6	106.375	133.4	100	170	113	16	13	6.5	19.5	4 - M12	K11 - 320/C6	K11 - 320A/C6
320	C8	139.719	171.4	100	220	113	18	14	8	24.2	4 - M16	K11 - 320/C8	K11 - 320A/C8
320	C11	196.869	235	100	290	113	20	16	10	29.4	6 - M20	K11 - 320/C11	K11 - 320A/C11
325	C6	106.375	133.4	100	170	113	16	13	6.5	19.5	4 - M12	K11 - 325/C6	K11 - 325A/C6
325	C8	139.719	171.4	100	220	113	18	14	8	24.2	4 - M16	K11 - 325/C8	K11 - 325A/C8
325	C11	196.869	235	100	290	113	20	16	10	29.4	6 - M20	K11 - 325/C11	K11 - 325A/C11
380	C8	139.719	171.4	130	220	126	18	14	8	24.2	4 - M16	K11 - 380/C8	K11 - 380A/C8
380	C11	196.869	235	130	290	126	20	16	10	29.4	6 - M20	K11 - 380/C11	K11 - 380A/C11
400	C8	139.719	171.4	130	220	126	18	14	8	24.2	4 - M16	K11 - 400/C8	K11 - 400A/C8
400	C11	196.869	235	130	290	126	20	16	10	29.4	6 - M20	K11 - 400/C11	K11 - 400A/C11
500	C11	196.869	235	190	290	144	20	16	10	29.4	6 - M20	K11 - 500/C11	K11 - 500A/C11
500	C15	285.775	330.2	210	400	144	21	17	10	35.7	6 - M24	K11 - 500/C15	K11 - 500A/C15
630	C11	196.869	235	190	290	165	20	16	10	29.4	6 - M20	K11 - 630/C11	K11 - 630A/C11
630	C15	285.775	330.2	260	400	165	21	17	10	35.7	6 - M24	K11 - 630/C15	K11 - 630A/C15
