Home Products K11/D Series Type D , Direct Mount , Mounting With Studs and Camlocks 3-Jaw Self-Centering Chucks

K11/D Series Type D , Direct Mount , Mounting With Studs and Camlocks 3-Jaw Self-Centering Chucks

Inquire

Product Description

FSDTM High Quality Cast Iron Body

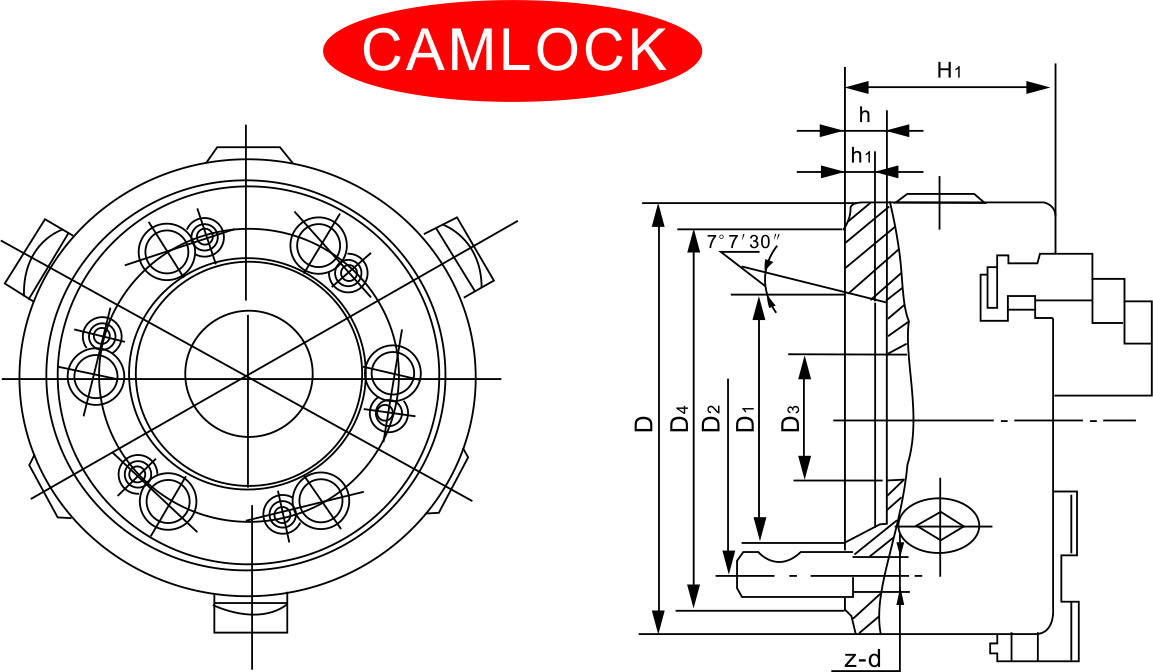

Chuck Size D	Taper Size	D1	D2	D3	D4	H1	h	h1	z - d	Chuck Model - Solid Jaws	Chuck Model - Two - Piece Jaws
125	D3	53.975	70.6	30	92	63.5	13	10	3 - M10×1	K11 - 125/D3	K11 - 125A/D3
125	D4	63.513	82.6	30	117	63.5	13	10	3 - M10×1	K11 - 125/D4	K11 - 125A/D4
160	D3	53.975	70.6	40	92	70	13	10	3 - M10×1	K11 - 160/D3	K11 - 160A/D3
160	D4	63.513	82.6	40	117	70	13	10	3 - M10×1	K11 - 160/D4	K11 - 160A/D4
160	D5	82.563	104.8	40	146	70	15	12	6 - M12×1	K11 - 160/D5	K11 - 160A/D5
200	D4	63.513	82.6	60	117	90	13	10	3 - M10×1	K11 - 200/D4	K11 - 200A/D4
200	D5	82.563	104.8	60	146	90	15	12	6 - M12×1	K11 - 200/D5	K11 - 200A/D5
200	D6	106.375	133.4	60	181	90	16	13	6 - M16×1.5	K11 - 200/D6	K11 - 200A/D6
250	D5	82.563	104.8	70	146	96.5	15	12	6 - M12×1	K11 - 250/D5	K11 - 250A/D5
250	D6	106.375	133.4	70	181	96.5	16	13	6 - M16×1.5	K11 - 250/D6	K11 - 250A/D6
250	D8	139.719	171.4	80	225	96.5	18	14	6 - M20×1.5	K11 - 250/D8	K11 - 250A/D8
315	D6	106.375	133.4	100	181	113	16	13	6 - M16×1.5	K11 - 315/D6	K11 - 315A/D6
315	D8	139.719	171.4	100	225	113	18	14	6 - M20×1.5	K11 - 315/D8	K11 - 315A/D8
315	D11	196.869	235	100	298	113	20	16	6 - M22×1.5	K11 - 315/D11	K11 - 315A/D11
320	D6	106.375	133.4	100	181	113	16	13	6 - M16×1.5	K11 - 320/D6	K11 - 320A/D6
320	D8	139.719	171.4	100	225	113	18	14	6 - M20×1.5	K11 - 320/D8	K11 - 320A/D8
320	D11	196.869	235	100	298	113	20	16	6 - M22×1.5	K11 - 320/D11	K11 - 320A/D11
325	D6	106.375	133.4	100	181	113	16	13	6 - M16×1.5	K11 - 325/D6	K11 - 325A/D6
325	D8	139.719	171.4	100	225	113	18	14	6 - M20×1.5	K11 - 325/D8	K11 - 325A/D8
325	D11	196.869	235	100	298	113	20	16	6 - M22×1.5	K11 - 325/D11	K11 - 325A/D11
380	D8	139.719	171.4	130	225	126	18	14	6 - M20×1.5	K11 - 380/D8	K11 - 380A/D8
380	D11	196.869	235	130	298	126	20	16	6 - M22×1.5	K11 - 380/D11	K11 - 380A/D11
400	D8	139.719	171.4	130	225	126	18	14	6 - M20×1.5	K11 - 400/D8	K11 - 400A/D8
400	D11	196.869	235	130	298	126	20	16	6 - M22×1.5	K11 - 400/D11	K11 - 400A/D11
500	D11	196.869	235	190	298	144	20	16	6 - M22×1.5	K11 - 500/D11	K11 - 500A/D11
500	D15	285.775	330.2	210	403	144	21	17	6 - M24×1.5	K11 - 500/D15	K11 - 500A/D15
630	D11	196.869	235	190	298	165	20	16	6 - M22×1.5	K11 - 630/D11	K11 - 630A/D11
630	D15	285.775	330.2	260	403	165	21	17	6 - M24×1.5	K11 - 630/D15	K11 - 630A/D15
