FSDTM High Quality Cast Iron Body
Standard accessories:
● 1 Set of hard top jaws
● 1 Set of hard master jaws
● 1 Chuck wrench
● 1 Set of mounting bolts
● 1 Hex key
● Eye bolts for chucks 315 and upper
Optional accessories:
● 1 Set of hard solid outside jaws
● 1 Set of hard solid inside jaws
● 1 Set of soft top jaws
● 1 Set of soft solid jaws

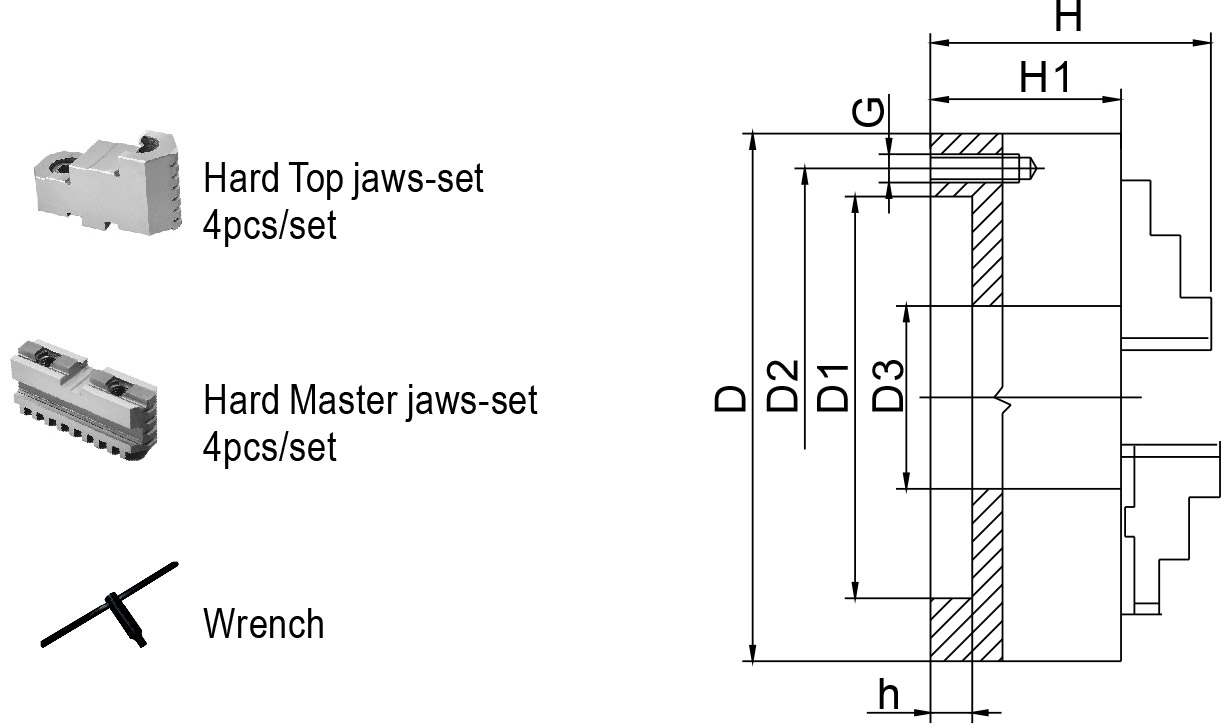

| Chuck Size D | D1 | D2 | Hole Dia. D3 | H | H1 | h | G | NM Max.Input Torque | R.P.M Max.Speed | Chuck Model |
|---|---|---|---|---|---|---|---|---|---|---|
| 125 | 95 | 108 | 30 | 98 | 58 | 4 | 3 - M8 | 100 | 3000 | K12 - 125A |
| 130 | 100 | 115 | 30 | 100 | 60 | 5 | 3 - M8 | 100 | 3000 | K12 - 130A |
| 160 | 130 | 142 | 45 | 109 | 65 | 5 | 3 - M8 | 160 | 2500 | K12 - 160A |
| 165 | 130 | 145 | 45 | 109 | 65 | 5 | 3 - M8 | 160 | 2500 | K12 - 165A |
| 190 | 155 | 172 | 55 | 122 | 75 | 5 | 3 - M10 | 250 | 2000 | K12 - 190A |
| 200 | 165 | 180 | 65 | 122 | 75 | 5 | 3 - M10 | 250 | 2000 | K12 - 200A |
| 230 | 190 | 210 | 70 | 139 | 80 | 5 | 3 - M12 | 250 | 1600 | K12 - 230A |
| 240 | 195 | 215 | 70 | 139 | 80 | 5 | 3 - M12 | 320 | 1600 | K12 - 240A |
| 250 | 206 | 226 | 80 | 139 | 80 | 5 | 3 - M12 | 320 | 1600 | K12 - 250A |
| 315 | 260 | 285 | 100 | 154.5 | 90 | 6 | 3 - M16 | 400 | 1200 | K12 - 315A |
| 320 | 270 | 290 | 100 | 154.5 | 90 | 6 | 3 - M16 | 400 | 1200 | K12 - 320A |
| 325 | 272 | 296 | 100 | 154.5 | 90 | 6 | 3 - M16 | 400 | 1200 | K12 - 325A |
| 380 | 325 | 350 | 130 | 172.5 | 100 | 6 | 3 - M16 | 500 | 1000 | K12 - 380A |
| 400 | 340 | 368 | 130 | 172.5 | 100 | 6 | 3 - M16 | 500 | 1000 | K12 - 400A |
| 500 | 440 | 465 | 210 | 204 | 115 | 6 | 6 - M16 | 630 | 800 | K12 - 500A |
| 630 | 560 | 595 | 260 | 222.5 | 131 | 7 | 6 - M16 | 800 | 800 | K12 - 630A |
| 800 | 450 | 368.3 | 320 | 246 | 159 | 20 | 6 - M24 | 1000 | 300 | K12 - 800A |
| 1000 | 910 | 950 | 460 | 292 | 180 | 9 | 6 - M24 | 1200 | 300 | K12 - 1000A |
| 1250 | 1000 | 1100 | 550 | 292 | 180 | 9 | 6 - M24 | 1300 | 200 | K12 - 1250A |
