K12/A1,A2 Series Type A1 & A2 , Direct Mount , Mounting From Front 4-Jaw Self-Centering Chucks

Inquire

FSDTM High Quality Cast Iron Body

Standard accessories for chuck

with solid jaws:

● 1 Set of hard solid outside jaws

● 1 Set of hard solid inside jaws

● 1 Chuck wrench

● 1 Set of mounting bolts

● 1 Hex key

● Eye bolts for chucks 315 and upper

Standard accessories for chuck

with two-piece jaws:

● 1 Set of hard top jaws

● 1 Set of hard master jaws

● 1 Chuck wrench

● 1 Set of mounting bolts

● 1 Hex key

● Eye bolts for chucks 315 and upper

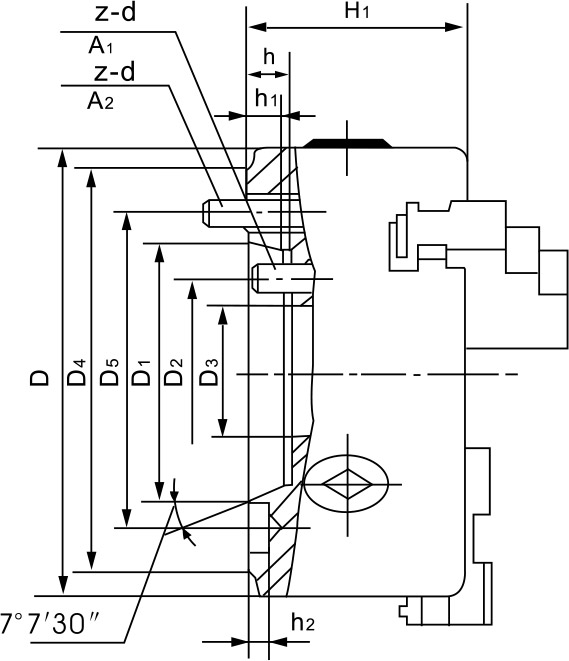

Chuck Size D	Taper Size	D1	D2	D3	D4	D5	H1	h	h1	h2	d1	z - d	Chuck Model - Solid Jaws	Chuck Model - Two - Piece Jaws
200	A2 - 4	63.513	-	60	108	82.6	90	13	10	6.5	14.7	4 - M10	K12 - 200/A2 - 4	K12 - 200A/A2 - 4
200	A1 - 5	82.563	61.9	40	133	-	90	14.288	12	6.5	16.3	4 - M10	K12 - 200/A1 - 5	K12 - 200A/A1 - 5
250	A1 - 6	106.375	82.6	55	165	-	96.5	15.875	13	6.5	19.5	4 - M12	K12 - 250/A1 - 6	K12 - 250A/A1 - 6
315	A2 - 6	106.375	-	100	165	133.4	113	16	13	6.5	19.5	8 - M12	K12 - 315/A2 - 6	K12 - 315A/A2 - 6
315	A1 - 8	139.719	111.1	78	210	171.4	113	17.462	14	8	24.2	4 - M16	K12 - 315/A1 - 8	K12 - 315A/A1 - 8
400	A2 - 6	106.375	-	100	165	133.4	126	16	13	6.5	19.5	8 - M12	K12 - 400/A2 - 6	K12 - 400A/A2 - 6
400	A2 - 8	139.719	-	130	210	171.4	126	18	14	8	24.2	8 - M16	K12 - 400/A2 - 8	K12 - 400A/A2 - 8
400	A1 - 11	196.869	165.1	130	280	-	126	19.05	16	10	29.4	4 - M20	K12 - 400/A1 - 11	K12 - 400A/A1 - 11
500	A2 - 11	196.869	-	190	280	235	144	20	16	10	29.4	8 - M20	K12 - 500/A2 - 11	K12 - 500A/A2 - 11
500	A2 - 15	285.775	-	210	380	330.2	144	21	17	10	35.7	8 - M24	K12 - 500/A2 - 15	K12 - 500A/A2 - 15
630	A2 - 11	196.869	-	190	280	235	165	20	16	10	29.4	8 - M20	K12 - 630/A2 - 11	K12 - 630A/A2 - 11
630	A2 - 15	285.775	-	260	380	330.2	165	21	17	10	35.7	8 - M24	K12 - 630/A2 - 15	K12 - 630A/A2 - 15
