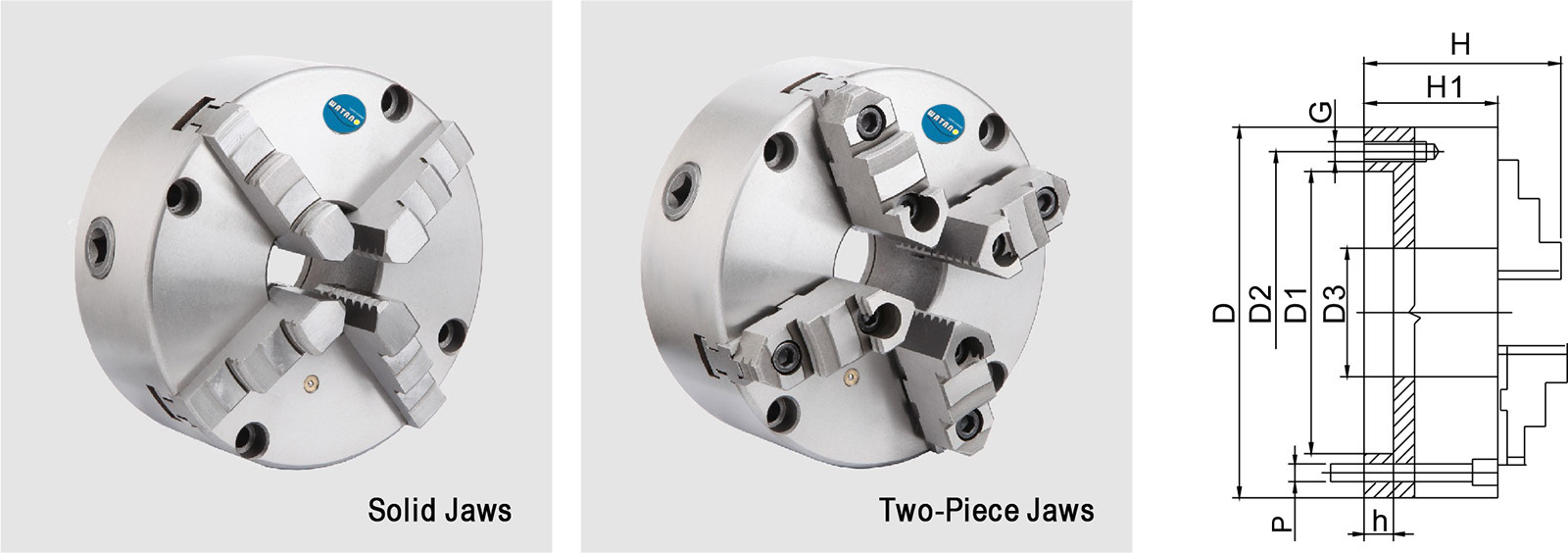

FSDTM High Quality Cast Iron Body
Standard accessories for chuck
with solid jaws:
● 1 Set of hard solid outside jaws
● 1 Set of hard solid inside jaws
● 1 Chuck wrench
● 1 Set of mounting bolts
● 1 Hex key
● Eye bolts for chucks 315 and upper
Standard accessories for chuck
with two-piece jaws:
● 1 Set of hard top jaws
● 1 Set of hard master jaws
● 1 Chuck wrench
● 1 Set of mounting bolts
● 1 Hex key
● Eye bolts for chucks 315 and upper
| Chuck Size D | D1 | D2 | D3 | H | H1 | h | Mounting Bolts - G | Mounting Bolts - P | NM Max.Input Torque | R.P.M Max.Speed | Chuck Model - Solid Jaws | Chuck Model - Two - Piece Jaws |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 80 | 55 | 66 | 16 | 66.5 | 50 | 3 | - | 4 - M6 | 40 | 4000 | K12 - 80(F) | - |
| 100 | 72 | 84 | 22 | 74.5 | 55 | 3 | - | 4 - M8 | 60 | 3500 | K12 - 100(F) | - |
| 125 | 95 | 108 | 30 | 84.5 | 58 | 4 | 3 - M8 | 4 - M8 | 100 | 3000 | K12 - 125(F) | K12 - 125A(F) |
| 130 | 100 | 115 | 30 | 86.5 | 60 | 5 | 3 - M8 | 4 - M8 | 100 | 3000 | K12 - 130(F) | K12 - 130A(F) |
| 160 | 130 | 142 | 45 | 94 | 65 | 5 | 3 - M8 | 4 - M8 | 160 | 2500 | K12 - 160(F) | K12 - 160A(F) |
| 165 | 130 | 145 | 45 | 94 | 65 | 5 | 3 - M8 | 4 - M8 | 160 | 2500 | K12 - 165(F) | K12 - 165A(F) |
| 190 | 155 | 172 | 55 | 105 | 75 | 5 | 3 - M10 | 4 - M10 | 250 | 2000 | K12 - 190(F) | K12 - 190A(F) |
| 200 | 165 | 180 | 65 | 109 | 75 | 5 | 3 - M10 | 4 - M10 | 250 | 2000 | K12 - 200(F) | K12 - 200A(F) |
| 230 | 190 | 210 | 70 | 120 | 80 | 5 | 3 - M12 | 4 - M12 | 250 | 1600 | K12 - 230(F) | K12 - 230A(F) |
| 240 | 195 | 215 | 70 | 120 | 80 | 5 | 3 - M12 | 4 - M12 | 320 | 1600 | K12 - 240(F) | K12 - 240A(F) |
| 250 | 206 | 226 | 80 | 120 | 80 | 5 | 3 - M12 | 4 - M12 | 320 | 1600 | K12 - 250(F) | K12 - 250A(F) |
| 315 | 260 | 285 | 100 | 147.5 | 90 | 6 | 3 - M16 | 4 - M16 | 400 | 1200 | K12 - 315(F) | K12 - 315A(F) |
| 320 | 270 | 290 | 100 | 147.5 | 90 | 6 | 3 - M16 | 4 - M16 | 400 | 1200 | K12 - 320(F) | K12 - 320A(F) |
| 325 | 272 | 296 | 100 | 147.5 | 90 | 6 | 3 - M16 | 4 - M16 | 400 | 1200 | K12 - 325(F) | K12 - 325A(F) |
| 380 | 325 | 350 | 130 | 173.5 | 100 | 6 | 3 - M16 | 4 - M16 | 500 | 1000 | K12 - 380(F) | K12 - 380A(F) |
| 400 | 340 | 368 | 130 | 173.5 | 100 | 6 | 3 - M16 | 4 - M16 | 500 | 1000 | K12 - 400(F) | K12 - 400A(F) |
| 500 | 440 | 465 | 210 | 202 | 115 | 6 | 6 - M16 | 4 - M16 | 630 | 800 | K12 - 500(F) | K12 - 500A(F) |
| 630 | 560 | 595 | 260 | 201 | 131 | 7 | 6 - M16 | 4 - M16 | 800 | 800 | K12 - 630(F) | K12 - 630A(F) |
| 800 | 450 | 368.3 | 320 | 229 | 159 | 20 | 6 - M24 | 4 - M24 | 1000 | 300 | K12 - 800(F) | K12 - 800A(F) |
| 1000 | 910 | 950 | 460 | 292 | 180 | 9 | 6 - M24 | 4 - M24 | 1200 | 300 | K12 - 1000(F) | K12 - 1000A(F) |
| 1250 | 1000 | 1100 | 550 | 292 | 180 | 9 | 6 - M24 | 4 - M24 | 1300 | 200 | K12 - 1250(F) | K12 - 1250A(F) |
