K72/A1,A2 Series 4-Jaw Independent Chucks TypeA1 & A2, Direct Mount, Mounting From Front

Inquire

FSDTM High Quality Cast Iron Body

Standard accessories:

● 1 Set of hard solid reversible jaws

● 1 Chuck wrench

● 1 Set of mounting bolts

● 1 Hex key

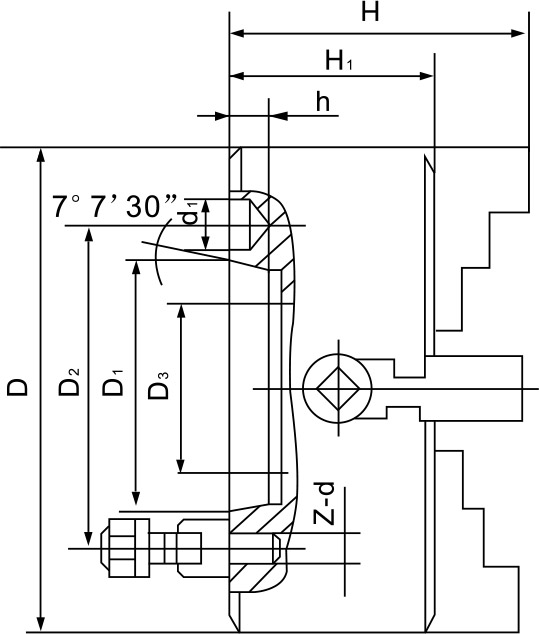

Chuck Size D	Taper Size	D1	D2	Hole Dia. D3	H	H1	h	d1	z - d	Chuck Model
320	6	106.375	133.4	95	114.5	90	13	19.5	4 - M12	K72 - 320/A2 - 6
320	8	139.719	171.4	95	134	90	14	24.2	4 - M16	K72 - 320/A2 - 8
400	8	139.719	171.4	125	143	95	14	24.2	4 - M16	K72 - 400/A2 - 8
400	11	196.869	235	160	143	95	16	29.4	4 - M20	K72 - 400/A2 - 11
500	8	139.719	171.4	130	161	106	14	24.2	4 - M16	K72 - 500/A2 - 8
500	11	196.869	235	160	161	106	16	29.4	4 - M20	K72 - 500/A2 - 11
630	11	196.869	235	160	181	116	16	29.4	4 - M20	K72 - 630/A2 - 11
630	15	285.775	330.2	180	181	116	17	35.7	4 - M24	K72 - 630/A2 - 15
800	11	196.869	235	180	210	136	16	29.4	8 - M20	K72 - 800/A2 - 11
800	15	285.775	330.2	180	210	152	17	35.7	8 - M24	K72 - 800/A2 - 15
1000	11	196.869	235	180	241	152	16	29.4	8 - M20	K72 - 1000/A2 - 11
1000	15	285.775	330.2	180	241	152	17	35.7	8 - M24	K72 - 1000/A2 - 15
1000	20	412.775	436.6	180	241	152	19	42.1	8 - M24	K72 - 1000/A2 - 20
1250	11	196.869	235	180	254	165	16	29.4	8 - M20	K72 - 1250/A2 - 11
1250	15	285.775	330.2	180	254	165	17	35.7	8 - M24	K72 - 1250/A2 - 15
1250	20	412.775	436.6	180	254	165	19	42.1	8 - M24	K72 - 1250/A2 - 20
