K72/C Series 4-Jaw Independent Chucks Type C , Direct Mount , Mounting With Studs and Camlocks

Inquire

FSDTM High Quality Cast Iron Body

Standard accessories:

● 1 Set of hard solid reversible jaws

● 1 Chuck wrench

● 1 Set of mounting bolts

● 1 Hex key

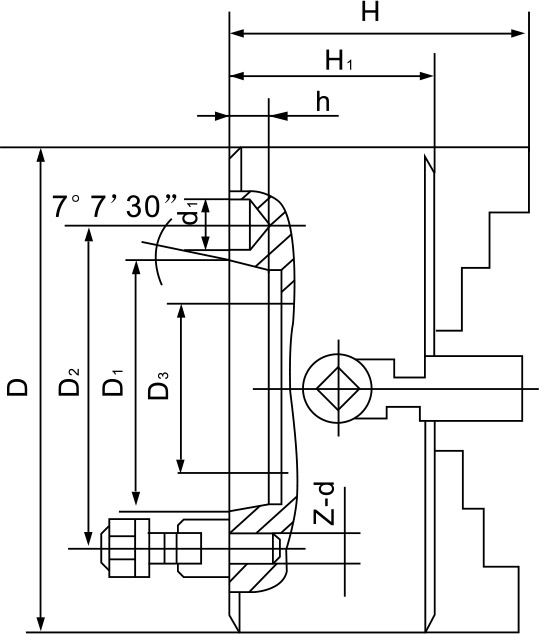

Chuck Size D	Taper Size	D1	D2	Hole Dia. D3	H	H1	h	d1	z - d	Chuck Model
250	4	63.513	85	60	116.5	82	10	14.7	3 - M10	K72 - 250/C4
320	6	106.375	133.4	95	114.5	90	13	19.5	4 - M12	K72 - 320/C6
320	8	139.719	171.4	95	114.5	90	14	24.2	4 - M16	K72 - 320/C8
400	8	139.719	171.4	125	143	95	14	24.2	4 - M16	K72 - 400/C8
400	11	196.869	235	125	143	95	16	29.4	6 - M20	K72 - 400/C11
500	8	139.719	171.4	125	161	106	14	24.2	4 - M16	K72 - 500/C8
630	8	139.719	171.4	130	181	115	14	24.2	4 - M16	K72 - 630/C8
630	11	196.869	235	160	181	116	16	29.4	6 - M20	K72 - 630/C11
630	15	285.775	330.2	160	181	116	17	35.7	6 - M24	K72 - 630/C15
800	11	196.869	235	180	210	136	16	29.4	6 - M20	K72 - 800/C11
800	15	285.775	330.2	180	210	136	17	35.7	6 - M24	K72 - 800/C15
1000	11	196.869	235	180	241	152	16	29.4	6 - M20	K72 - 1000/C11
1000	15	285.775	330.2	280	241	152	17	35.7	6 - M24	K72 - 1000/C15
1250	11	196.869	235	180	254	165	16	29.4	6 - M20	K72 - 1250/C11
1250	15	285.775	330.2	280	254	165	17	35.7	6 - M24	K72 - 1250/C15
