K72/D Series 4-Jaw Independent Chucks Type D , Direct Mount , Mounting With Studs and Camlocks

Inquire

FSDTM High Quality Cast Iron Body

Standard accessories:

● 1 Set of hard solid reversible jaws

● 1 Chuck wrench

● 1 Set of mounting bolts

● 1 Hex key

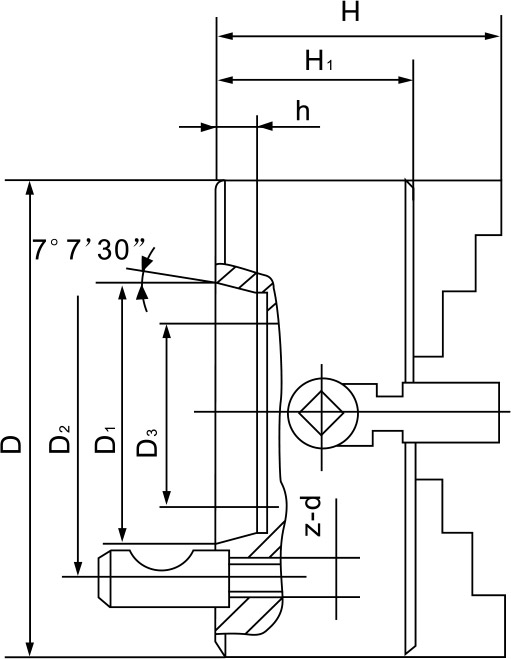

Chuck Size D	Taper Size	D1	D2	Hole Dia. D3	H	H1	h	z - d	Chuck Model
160	3	53.975	70.6	45	98	70	10	3 - M10×1	K72 - 160/D3
160	4	63.513	82.6	45	100	72	10	3 - M10×1	K72 - 160/D4
200	4	63.513	82.6	56	113	78	10	3 - M10×1	K72 - 200/D4
200	5	82.563	104.8	56	113	78	12	6 - M12×1	K72 - 200/D5
250	4	63.513	82.6	60	116.5	82	10	3 - M10×1	K72 - 250/D4
250	6	106.375	133.4	65	116.5	80	13	6 - M16×1.5	K72 - 250/D6
320	6	106.375	133.4	95	141.5	90	13	6 - M16×1.5	K72 - 320/D6
320	8	139.719	171.4	95	141.5	90	14	6 - M20×1.5	K72 - 320/D8
400	6	106.375	133.4	75	143	95	13	6 - M16×1.5	K72 - 400/D6
400	8	139.719	171.4	125	143	95	14	6 - M20×1.5	K72 - 400/D8
400	11	196.869	235	160	143	95	16	6 - M22×1.5	K72 - 400/D11
500	8	139.719	171.4	125	161	106	14	6 - M20×1.5	K72 - 500/D8
500	11	196.869	235	160	161	106	16	6 - M22×1.5	K72 - 500/D11
630	11	196.869	235	160	181	116	16	6 - M22×1.5	K72 - 630/D11
800	11	196.869	235	180	210	136	16	6 - M22×1.5	K72 - 800/D11
1000	11	196.869	235	180	241	150	16	6 - M22×1.5	K72 - 1000/D11
1000	15	285.775	330.2	180	241	152	17	6 - M24×1.5	K72 - 1000/D15
1250	15	285.775	330.2	180	241	165	17	6 - M24×1.5	K72 - 1250/D15
