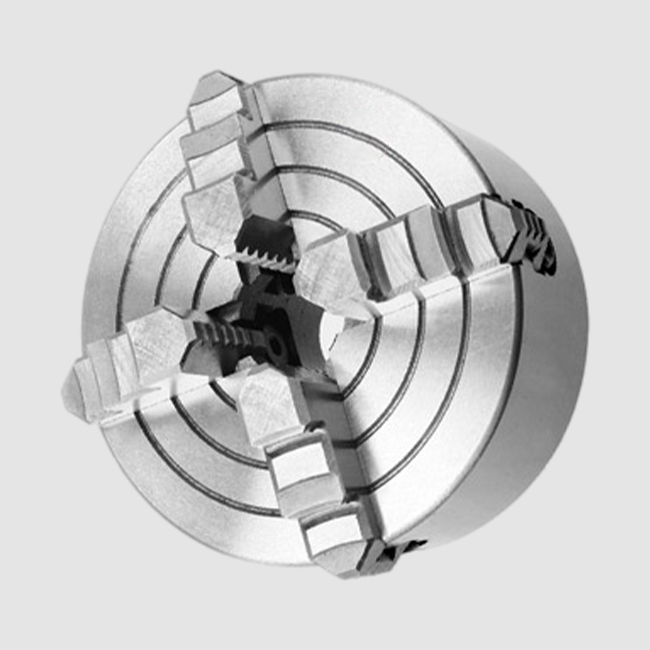

FSDTM High Quality Cast Iron Body
Standard accessories:
● 1 Set of hard solid reversible jaws
● 1 Chuck wrench
● 1 Set of mounting bolts
● 1 Hex key

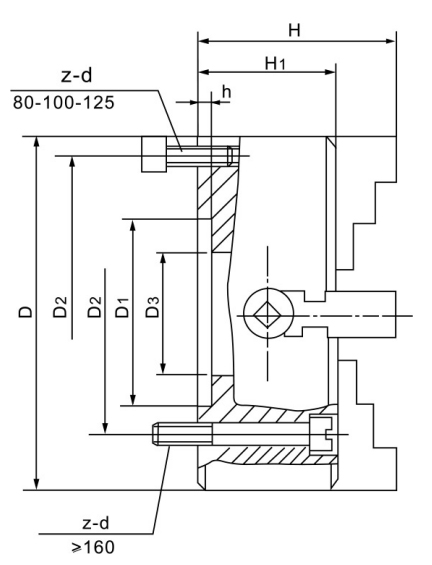

| Chuck Size D | D1 | D2 | Hole Dia D3 | H | H1 | h | z-d | Chuck Model |
| 80 | 55 | 66 | 22 | 58 | 42 | 3 | 4-M6 | K72-80 |
| 100 | 72 | 84 | 25 | 77 | 54 | 3 | 4-M8 | K72-100 |
| 125 | 95 | 108 | 30 | 78 | 56 | 4.5 | 4-M8 | K72-125 |
| 160 | 65 | 95 | 45 | 96.5 | 65 | 5 | 4-M10 | K72-160 |
| 160 | 130 | 145 | 40 | 96.5 | 65 | 5 | 4-M10 | K72-160B |
| 200 | 75 | 95 | 56 | 113 | 78 | 6 | 4-M10 | K72-200 |
| 250 | 100 | 120 | 65 | 116.5 | 82 | 6 | 4-M12 | K72-250 |
| 300 | 152 | 130 | 75 | 137.5 | 85 | 6 | 4-M12 | K72-300 |
| 320 | 140 | 165 | 95 | 141.5 | 90 | 6 | 4-M16 | K72-320 |
| 350 | 130 | 168 | 80 | 146.5 | 95 | 8 | 4-M16 | K72-350 |
| 400 | 160 | 185 | 125 | 143 | 95 | 8 | 4-M16 | K72-400 |
| 450 | 180 | 205 | 140 | 147 | 100 | 8 | 4-M16 | K72-450 |
| 500 | 200 | 236 | 160 | 161 | 106 | 8 | 4-M20 | K72-500 |
| 630 | 220 | 258 | 180 | 181 | 116 | 10 | 4-M20 | K72-630 |
| 800 | 250 | 300 | 210 | 210 | 136 | 12 | 4-M20 | K72-800 |
| 1000 | 320 | 370 | 260 | 241 | 152 | 15 | 4-M20 | K72-1000 |
| 1250 | 285 | 330.2 | 180 | 254 | 165 | 25 | 8-M24 | K72-1250 |
