Home Products K12 Series 4-Jaw Self-Centering Chucks Plain Back, Two Sets of Hard Solid Jaws
FSDTM High Quality Cast Iron Body
Standard accessories:
● 1 Set of hard top jaws
● 1 Set of hard master jaws
● 1 Chuck wrench
● 1 Set of mounting bolts
● 1 Hex key
● Eye bolts for chucks 315 and upper
Optional accessories:
● 1 Set of hard solid outside jaws
● 1 Set of hard solid inside jaws
● 1 Set of soft top jaws
● 1 Set of soft solid jaws
1

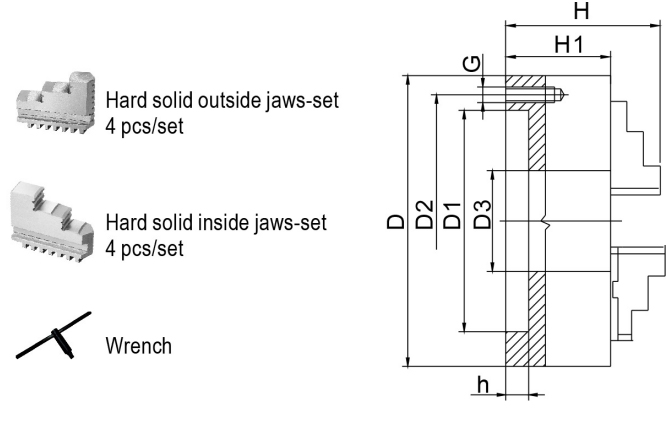

Chuck Size DD1D2Hole Dia D3HH1hGNM Max.Input TorqueR.P.M Max.SpeedChuck Model
8055661666.55033-M6404000K12-80
100 72 84 22 74.5 55 3 3-M860 3500 K12-100
125951083084.55843-M81003000K12-125
130 100 115 30 86.5 60 5 3-M8100 3000 K12-130
160 130 142 45 94 65 5 3-M8160 2500 K12-160
165 130 145 45 94 65 5 3-M8160 2500 K12-165
190155172551057553-M102502000K12-190
200 165 180 65 109 75 5 3-M10250 2000 K12-200
230190210701208053-M122501600K12-230
240 195 215 70 120 80 5 3-M12320 1600 K12-240
250206226801208053-M123201600K12-250
315 260 285 100 147.5 90 6 3-M16400 1200 K12-315
320 270 290 100 147.5 90 6 3-M16400 1200 K12-320
325 272 296 100 147.5 90 6 3-M16400 1200 K12-325
380 325 350 130 173.5 100 6 3-M16500 1000 K12-380
400 340 368 130 173.5 100 6 3-M16500 1000 K12-400
500 440 465 210 202 115 6 6-M16630 800 K12-500
630 560 595 260 2011317 6-M16800 800 K12-630
800450368.3320229159206-M241000300K12-800
1000 910 950 460 292 180 9 6-M241200 300 K12-1000
12501000110055029218096-M241300200K12-1250
