FSDTM High Quality Cast Iron Body
Standard accessories for chuck
with solid jaws:
● 1 Set of hard solid outside jaws
● 1 Set of hard solid inside jaws
● 1 Chuck wrench
● 1 Set of mounting bolts
● 1 Hex key
● Eye bolts for chucks 315 and upper
Standard accessories for chuck
with two-piece jaws:
● 1 Set of hard top jaws
● 1 Set of hard master jaws
● 1 Chuck wrench
● 1 Set of mounting bolts
● 1 Hex key
● Eye bolts for chucks 315 and upper

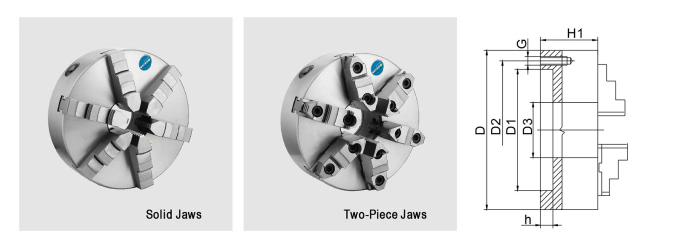

| Chuck Size D | D1 | D2 | Hole Dia D3 | H1 | h | G | NM Max.Input Torque | R.P.M Max.Speed | Chuck Model | ||
| Solid Jaws | Two-Piece Jaws | ||||||||||
| 100 | 72 | 84 | 22 | 55 | 3 | 3-M8 | 60 | 3500 | K13-100 | - | |
| 130 | 95 | 108 | 30 | 60 | 4 | 3-M8 | 100 | 3000 | K13-130 | - | |
| 165 | 130 | 142 | 45 | 65 | 5 | 3-M8 | 160 | 2500 | K13-165 | K13-165A | |
| 200 | 165 | 180 | 65 | 75 | 5 | 3-M10 | 250 | 2000 | K13-200 | K13-200A | |
| 250 | 206 | 226 | 80 | 80 | 5 | 3-M12 | 320 | 1600 | K13-250 | K13-250A | |
| 315 | 260 | 285 | 100 | 90 | 6 | 3-M16 | 400 | 1200 | K13-315 | K13-315A | |
| 400 | 340 | 368 | 130 | 112.5 | 6 | 3-M16 | 500 | 1000 | K13-400 | K13-400A | |
